Medical

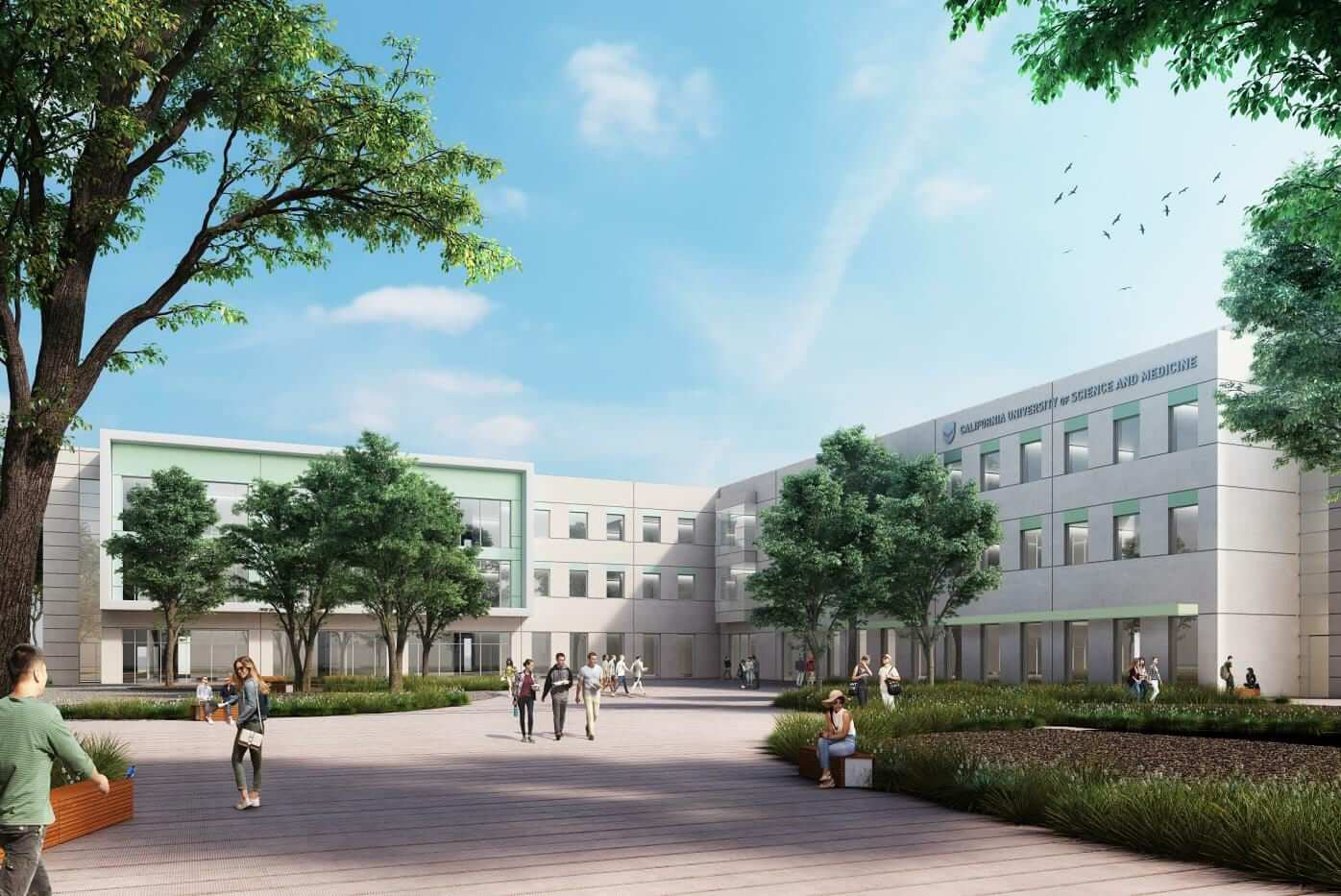

CUSM (California University of Science and Medicine)

          The site for the new School of Medicine is currently connects directly to the Arrowhead Regional Medical Center campus.  It consist of research labs, labs support, clinical anatomy, cadaver labs, etc.  Laboratory supply and exhaust systems was designed and placed on standby power to maintain environmental conditions relative to the negative pressure of labs, exhaust form the fume hood and vented base cabinets.

          Christian Brothers Mechanical Services was hired during the initial schematic design as a Design Build contractor.  In addition to the having Engineers performed the design in-house, this was a BIM coordinated project and a Building Automation Controls system was that performed in-house.

          This project was designed to have active pressure control utilizing volumetric offset to maintain negative or positive pressure differential.  Other spaces listed above requiring pressurization will have passive pressure control to maintain airflow direction.  This was designed to be accomplished through air balance of supply and exhaust systems.

          This project is consisted of 6 VRF system totaling up to 200 TONS of cooling with more than 90 indoor fan coils with 2 dedicated outside units with a combined of over 42,000 CFM.  Christian Brothers teamed up with ANTEC controls to design a fully operational laboratory control air valves system including 17 pressure controls for both supply and exhaust valves and room pressure controls for the laboratory.

          The heating system on this project is comprised of two high-efficiency condensing boilers 3000 MBTU , variable volume, and two circulating pumps.

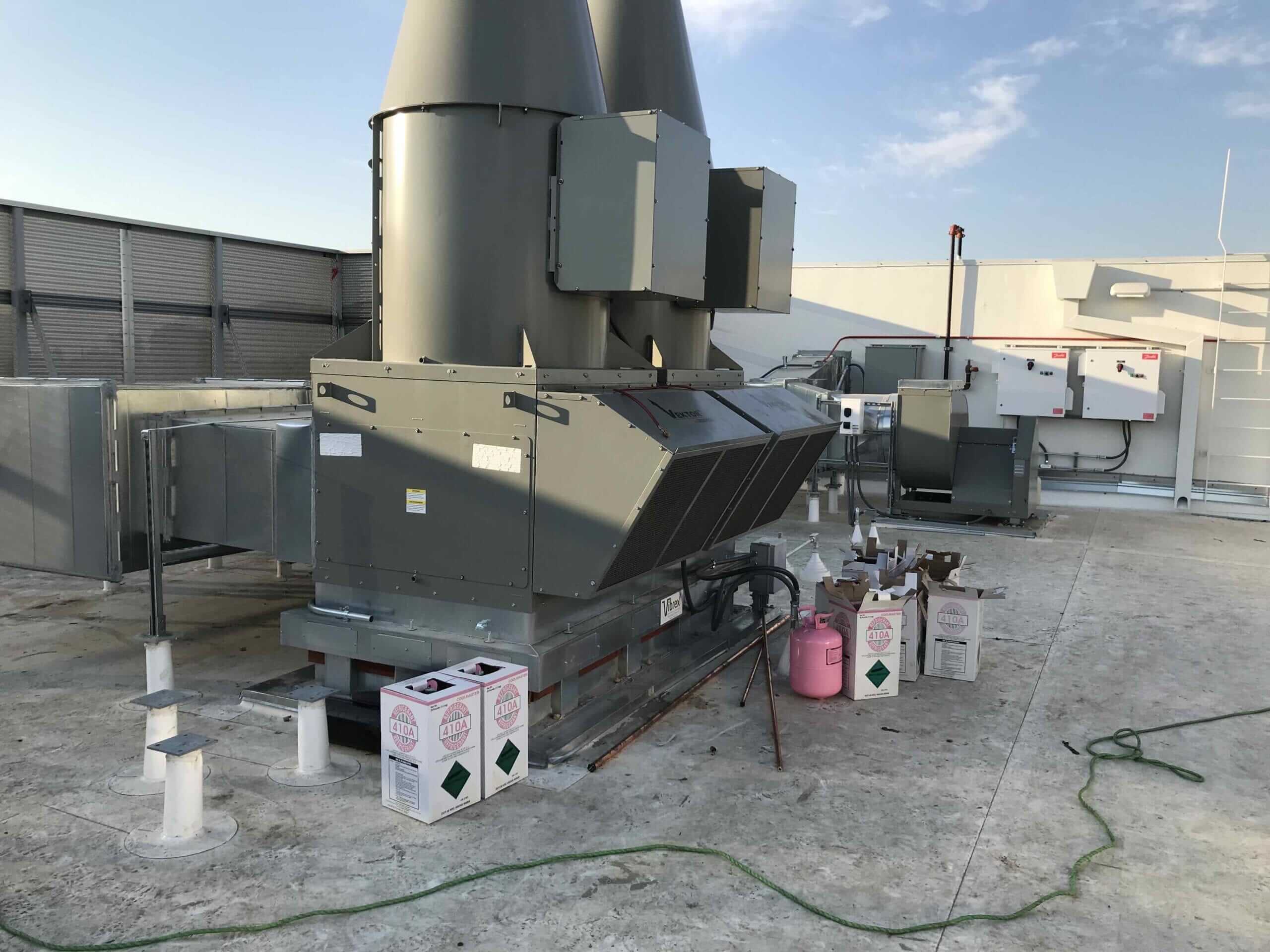

          Due to the complicated system with variety of pressure requirement, we design a fully DDC control system based on web based Niagara N4 BACnet platform.  The system controls the exhaust fans, DOAS units, relief fan, and boilers to be integrated with the VRF system.

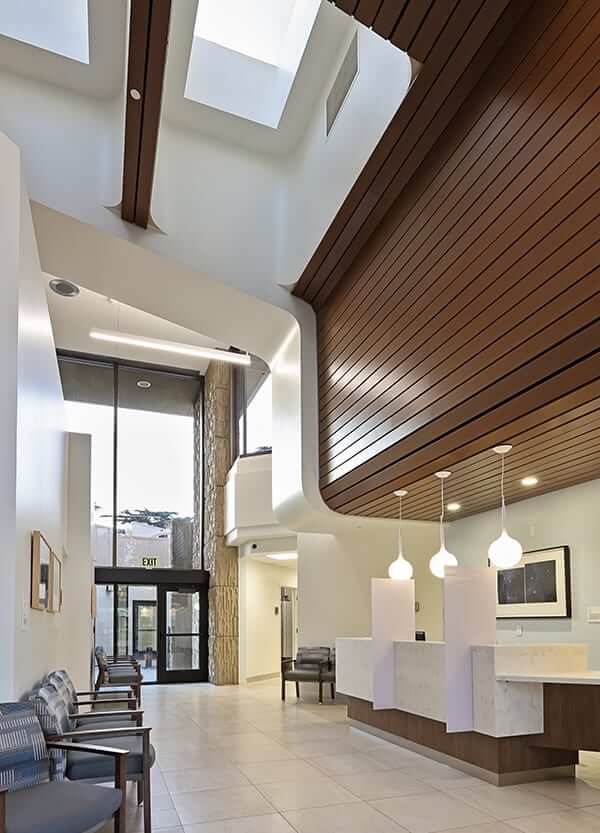

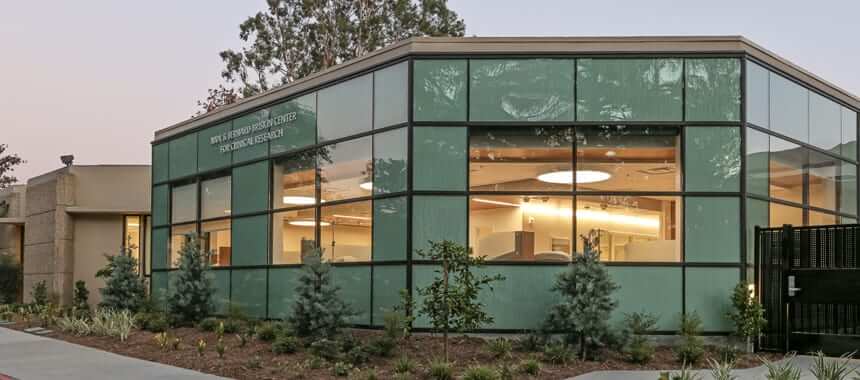

City of Hope Familian Clinical Research Unit

  1. OSHPD 3 Project that involved a partial remodel and new construction of a Clinical Research Unit that also includes an Infusion Treatment Center, Isolation Rooms, Chemo Room, and Pathology Lab
  2. Work included
    1. Install (2) Temtrol Air Handlers and associated Chilled Water Piping back to Hospital Central Plant
    2. Install (1) Steam humidifier with associated Pressure Reducing Station, Condensate Pump and piping back to Hospital Boiler Room
  • Install (19) VAVs with Reheat and associated Heating Hot Water piping back to the Hospital Boiler Room
  1. Install (4) Exhaust Fans
  2. Install all associated ducting, including (8) Sound Traps
  3. Install all associated Air Distribution Devices, including (8) Laminar Flow Hoods
  • Install (1) Split AC Unit with Ducted Fan Coil
  • Install (1) 100% Outside Air Split System Aaon AC Unit to serve Pathology Lab
  1. Install a complete Accutrol AccuValve System (on Supply and Exhaust Systems) to control room pressure within the Chemo Isolation Room
    1. Accutrol System was tied into (3) Chemo Hoods in order to maintain constant Exhaust Flow within Hoods, as well as negative room pressure
  2. Install a complete Siemens building management system (BMS) with connection back to Central Plant Front End Device
    1. Included Pressure Monitoring for all Isolation Rooms with Remote Alarms installed at the Nurse Station

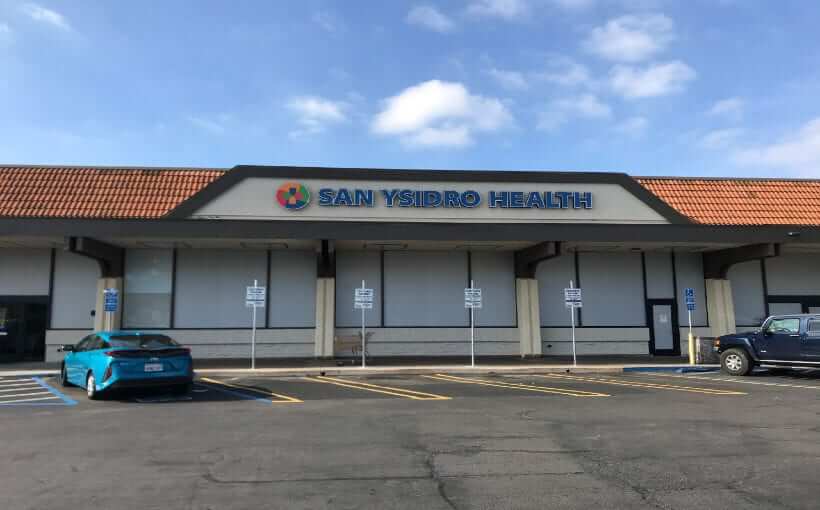

SYHC PACE (San Ysidro Health Care Program for All-Inclusive Care for the Elderly)

  1. OSHPD 3 Project that involved the repurposing of an existing commercial building into a Senior Care Center
  2. Work included
    1. Upgrade an existing Rooftop York Units to Title 24 Compliance by adding a Low Leak Economizer and Power Exhaust
    2. Install (7) New Rooftop Package Units
  • Install (2) Split System AC Units
  1. Install (5) Inline High Efficiency Filter banks for General Exhaust and Patient Care Rooms
  2. All new ductwork and air distribution devices
  3. Install a complete building management system (BMS) with a central controller for all new and existing equipment
